Kubernetes AI Operator & Workflow Architecture

Welcome to the technical documentation portal for the Tuluat Kubernetes AI Operator & Workflow Engine.

🏛️ System Overview

The operator extends Kubernetes with declarative AI resources (LlmProvider, AiAgent, AiWorkflow, WorkflowSession, McpServer). It orchestrates multi-agent workflows using an embedded Graph State Machine Engine and persists session states, conversation history, and vector embeddings in PostgreSQL (with pgvector).

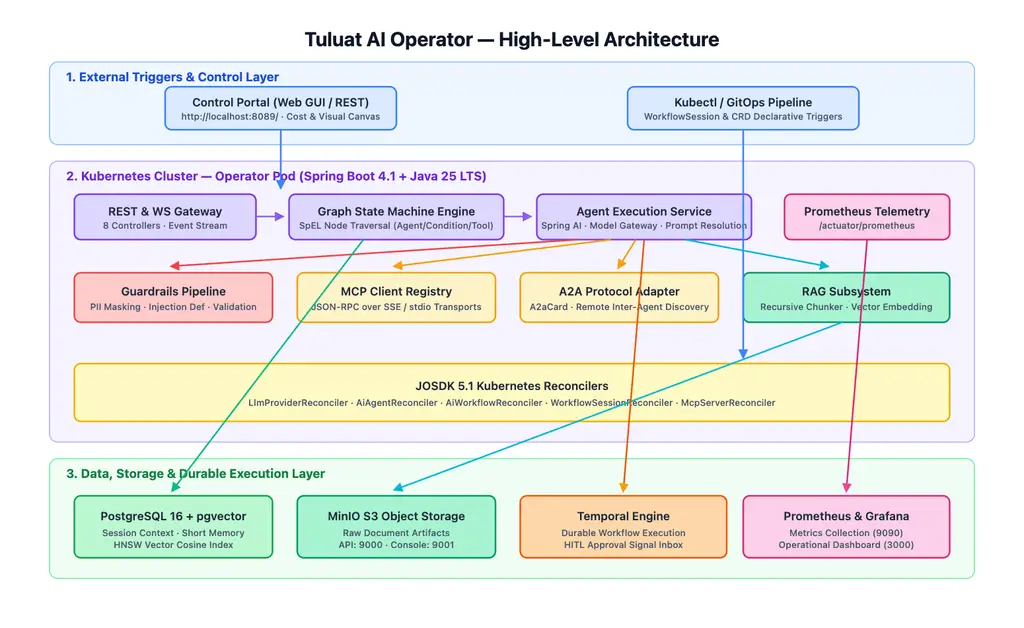

Tuluat High-Level Architecture Diagram

graph TD
    subgraph Kubernetes Control Plane
        CRD1[LlmProvider CRD]
        CRD2[AiAgent CRD]
        CRD3[AiWorkflow CRD]
        CRD4[WorkflowSession CRD]
        CRD5[McpServer CRD]
    end

    subgraph AI Operator Service Pod
        Rec[JOSDK Reconcilers]
        API[REST & WebSocket API]
        ExecSvc[WorkflowExecutionService]
        Engine[GraphStateMachineEngine]
        AgentExec[AgentExecutionService]
        Guardrails[Safety Guardrails Engine]
        RagSvc[RAG & Object Storage]
    end

    subgraph Persistence Layer
        Postgres[(PostgreSQL DB + pgvector)]
        MinIO[(MinIO S3 Storage)]
    end

    CRD1 --> Rec
    CRD2 --> Rec
    CRD3 --> Rec
    CRD4 --> Rec
    CRD5 --> Rec

    API --> ExecSvc
    Rec --> ExecSvc
    ExecSvc --> Engine
    Engine --> AgentExec
    AgentExec --> Guardrails
    AgentExec --> RagSvc

    Engine --> Postgres
    RagSvc --> Postgres
    RagSvc --> MinIO
